Planum Solar Tile
PLANUM SOLAR TILE
The Planum Solar roof tile is designed to be installed alongside the standard Planum tile range, which provides many benefits. The days of bulky solar panels that sit above roof tiles are gone, not only is this ugly to look at, it's no longer efficient.
By replacing this with build-in solar panels within roof tiles it creates a far better aesthetically pleasing installation. The Planum Solar tile perfectly integrates into the roof and is the equivalent of replacing 3.5 tiles. The unique design is highly engineered and will not only enhance the value of your property it will also save you money as the building will be independent of utility providers, making it ecological and sustainable too.
With a 35 year guarantee you can be sure that by specifying and using the Planum Solar roof tile you will have a quality roof to last a lifetime.
DATA SHEET

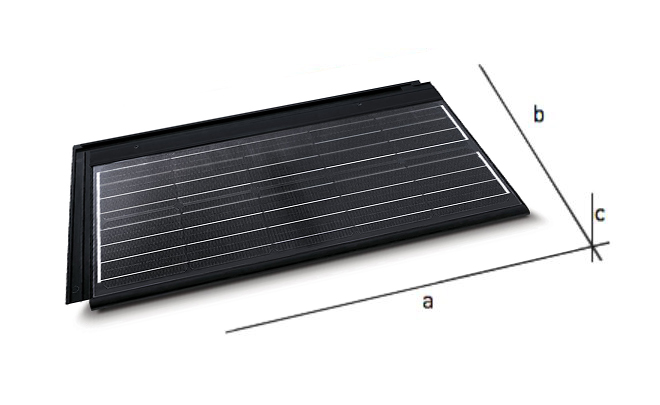

Dimensions
a 823 mm
b 340 mm
c 61 mm
Solar Cell Dimensions 156 x 156mm
Roof Pitch
Minium Pitch 10°
Optimal pitch 22° for ideal solar collection
Pieces per m2
3.2 tiles per m2
Individual tile weight
13.1 Kg
Weight per m2 laid
42 kg / m2
Rated Maximum Power
47 (Pmax/W)
Power/m2
148 W
View the Case Studies
Stoneleaf Tiles are supplied around the UK
Excellent Flatness
Each tile is individually cured in H-Cassettes with no contact points.
Perfectly defined tiles
The use of gypsum moulds gives a much finer texture.
Low absorption
Higher resistance to ice and mould formation.
Lifetime warranty
Our 100 year guarantee gives you peace of mind and demonstrates the quality of the manufacturing process.
