VIENNA LOW PITCH CLAY ROOF TILE

The Vienna low pitch roof tile combines the character and appeal of a natural clay roofing product along with the performance of a modern interlocking tile.  The Vienna is manufactured using top quality Spanish clay and fired at high temperatures to give strength and high performance qualities, making it the perfect choice to protect your home from the wind and rain.

The interlocking nature of the tile along with the ability to use it on pitches as low as 13 degrees, puts it at the forefront of the clay tile market.

Download the technical datasheet for full specification.

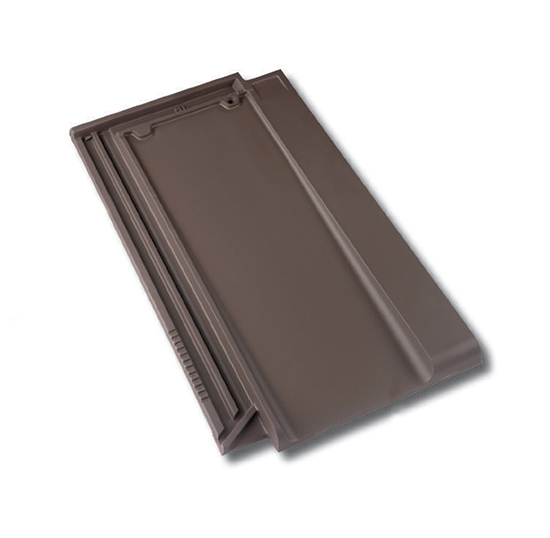

Vienna clay single tile
100 year guarantee 200

DATA SHEET

Dimensions

a 465 mm

b 258 mm

c 30 mm

​Minimum Pitch

13° when used with underlay. Please refer to technical department for guidance.

​Pieces per m2

11.5

​Individual tile weight

3.45 Kg

​Batten Gauge

321 - 401 mm

​​Cover Width

213 - 215 mm

​Weight per m2 laid

40.25 kg / m2

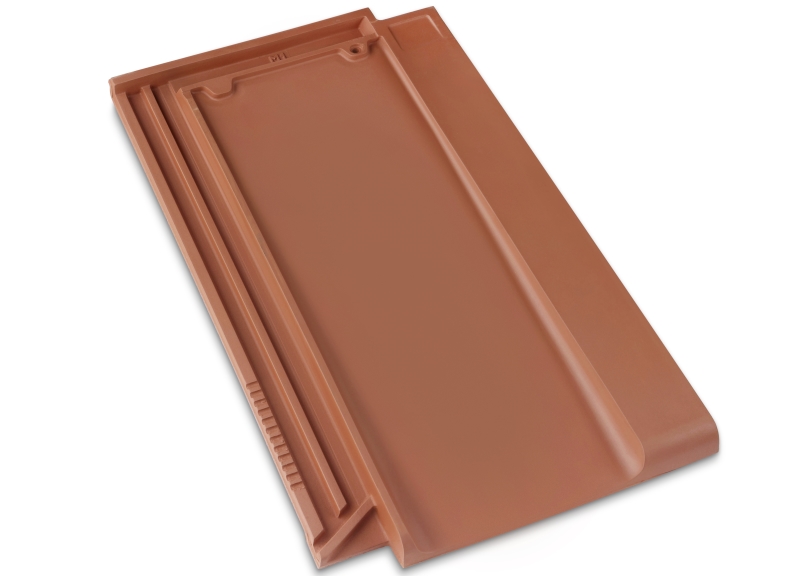

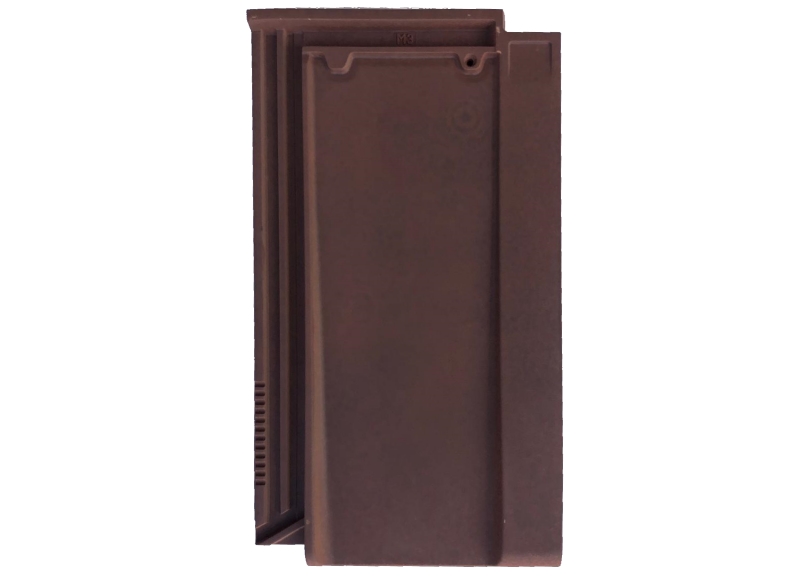

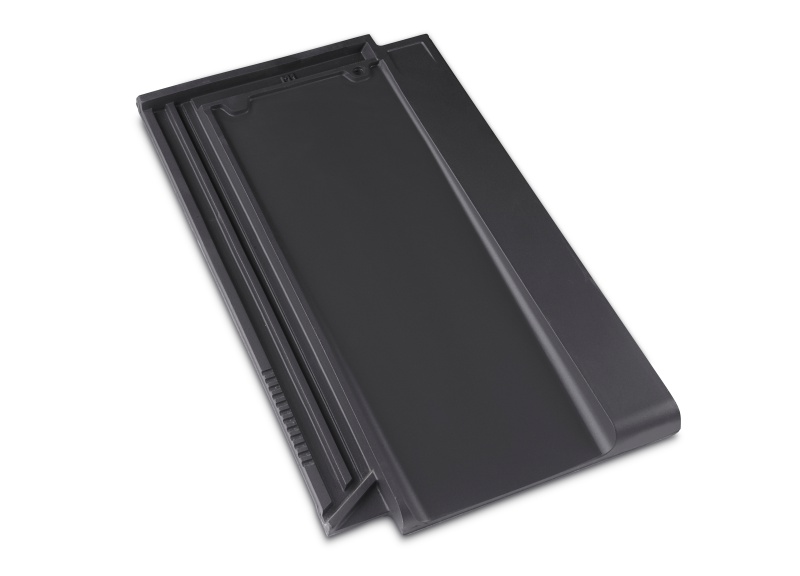

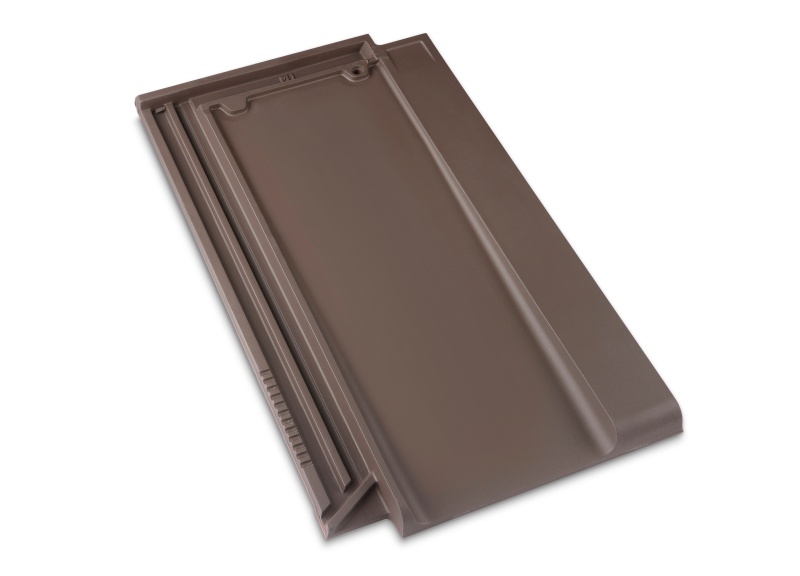

VIENNA CLAY TILE COLOUR RANGE

The Vienna is available  in 5 colours including the following:



Excellent Flatness

Each tile is individually cured in H-Cassettes with no contact points.

Perfectly defined tiles

The use of gypsum moulds gives a much finer texture.

Low absorption

Higher resistance to ice and mould formation.

Lifetime warranty

Our 100 year guarantee gives you peace of mind and demonstrates the quality of the manufacturing process.
